Marshall CV610-U3W-V2
& CV610-U3-V2

Video confencing PTZ Camera


Camera-CV-610-3

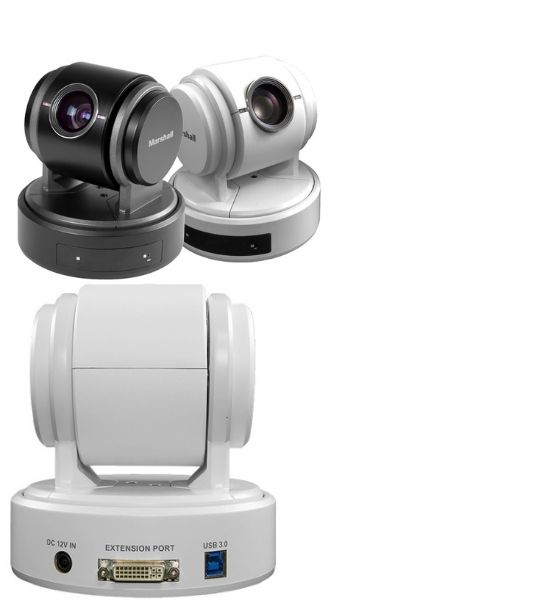

Marshall CV610-U3W-V2 (White)
CV610-U3-V2 (Black/Silver)


  • 2-Megapixel HD Sensor
  • 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
  • Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
  • USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
  • Full-HD resolutions: 1920x1080p, 1280x720p
  • Frame rates: 60, 50, 30, 25 fps
  • HDMI output resolution can be set independently of USB output resolutions
  • Onboard audio mic & 3.5mm TRS audio jack (optional input)
  • Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
  • Up to 128 presets with quiet, smooth transitions
  • Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0
  • Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera

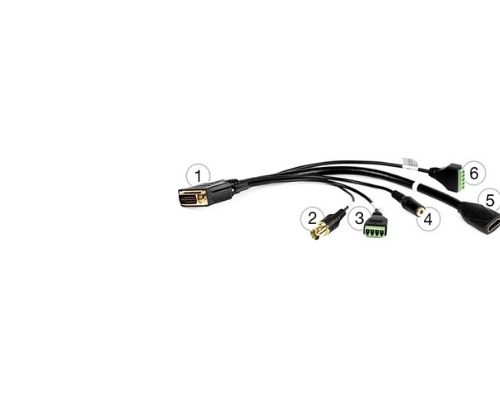

CV610-U3 Cable (included with camera)



  • Camera Port (connect to rear of camera)
  • CVBS (non active)
  • RS232 Control Port: RX(1), TX(2), GND(3), NC(4)
  • Audio line IN (3.5mm jack)
  • HDMI video output
  • RS422/485 Control Port: GND(1), T+(2), T-(3), R+(4), R-(5)
CV610-U3 Cable
